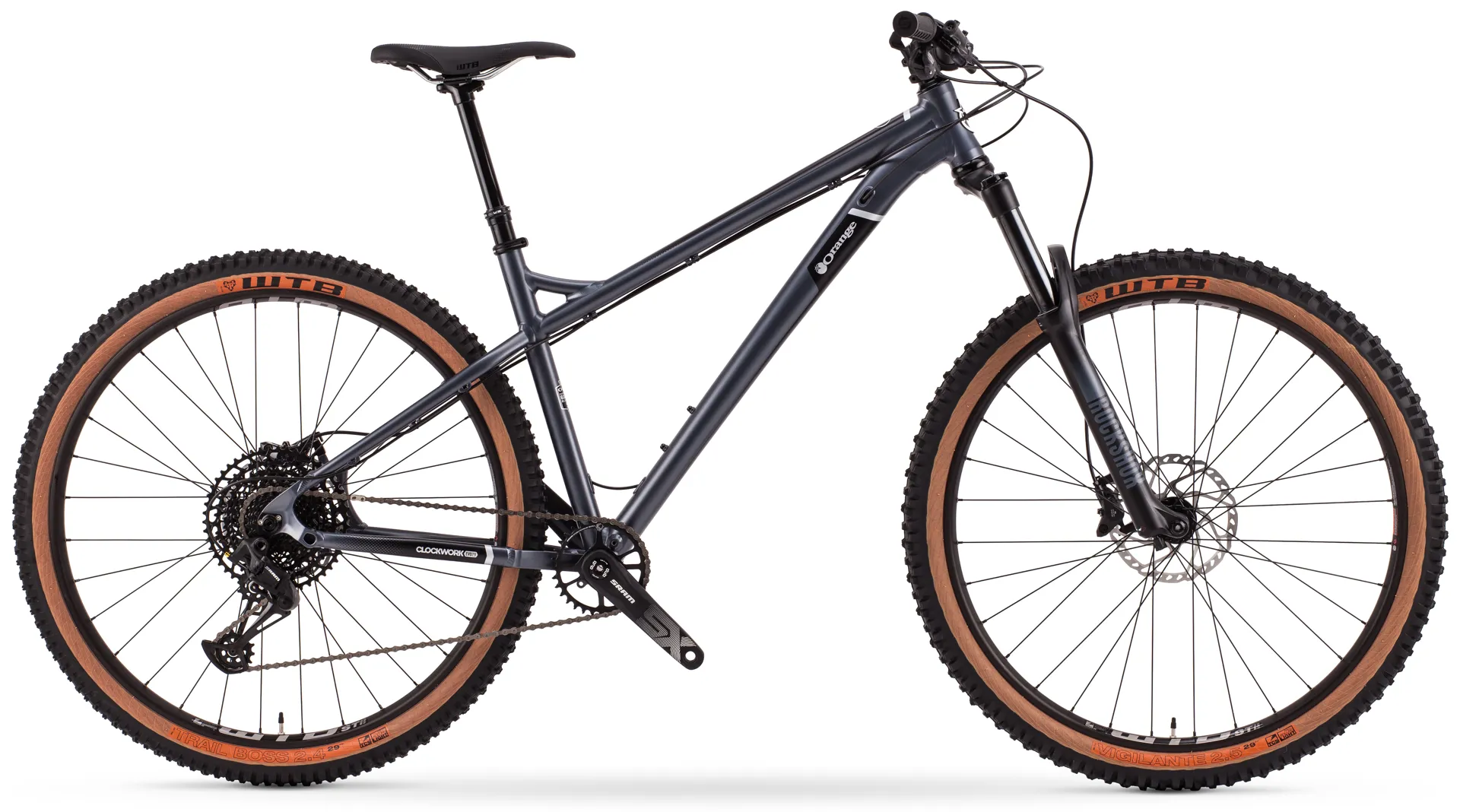

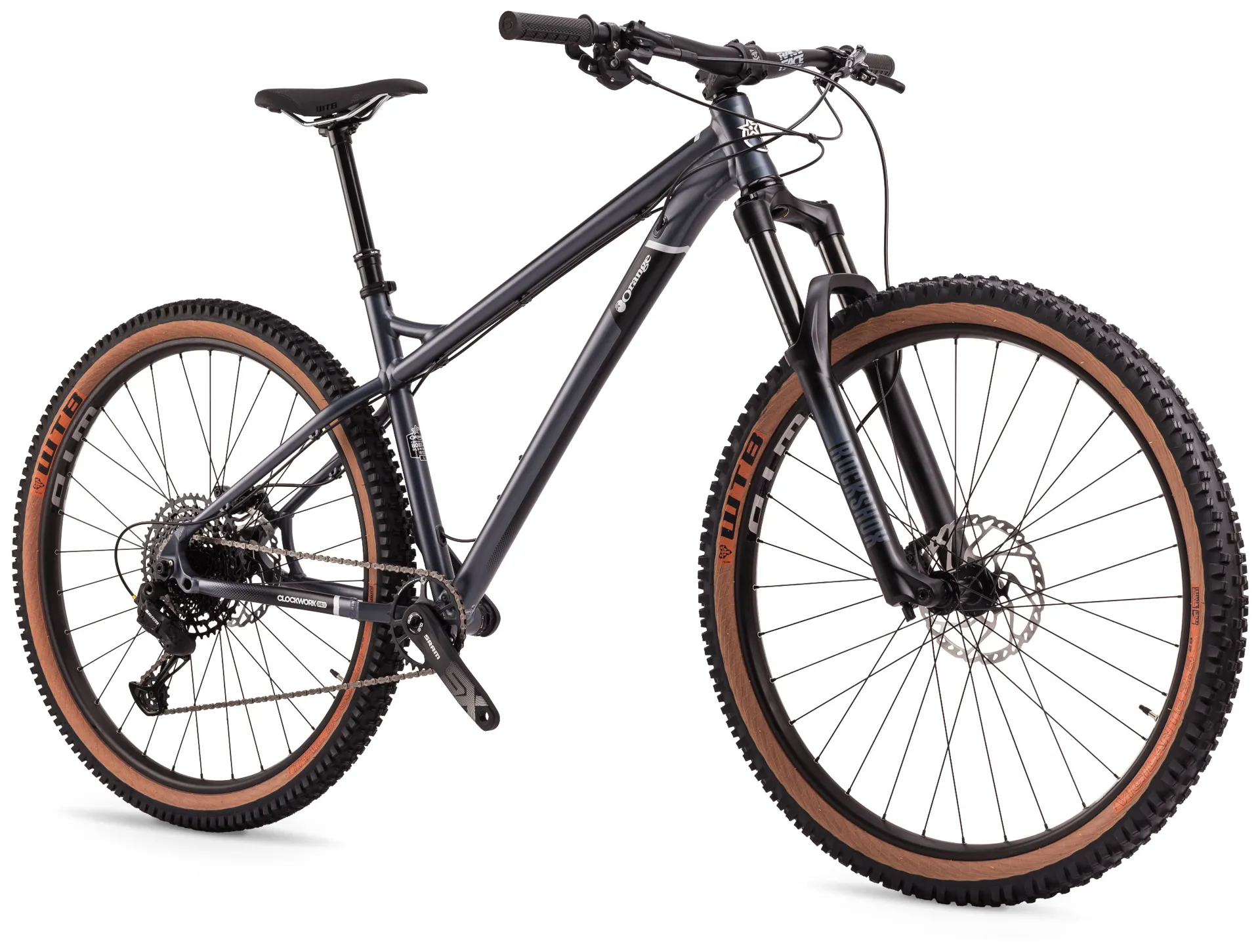

Orange Bikes Clockwork Evo S 29 Inch Complete Bike Charcoal Grey

Season:2021

Brand:Orange Bikes

Code:B21CLEV29S-MCHGR

The new Clockwork EVO 29 pushes the 29er model into the hard & fast trail arena. Running a 130mm travel fork, this one's for the fast and loose big wheel hardtail fans out there.

The EVO 29 shares the same tidy frame features as the 27.5:
neat external routing that tucks the cables cleanly under the top tube and internal stealth cable routing for a dropper post are both nice touches. The sturdy 12x148mm Boost bolt-though rear axle adds strength and rigidity for the 29er wheelset.

Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose to ride the Clockwork EVO 29, it will be a more than worthy trail buddy.

Why the Clockwork EVO?

F: 130MM | W: 29

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited LifetimeCrash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for 140mm travel fork
  • Bolt through 12 x 148 boost hub spacing

Frame & Fork

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Rear Shock N/A
Headset FPD 44mm For Tapered Steerer
Fork RockShox 35 Silver TK 130mm 29
Swingarm Bolt Type Allen Key Head (Boost 148mm Hub)

Drivetrain

Chain Device Not Included
Bottom Bracket SRAM DUB
Crankset SRAM GX Eagle 32t
Rear Mech SRAM SX Eagle 12spd
Chain SRAM SX Eagle
Shifters SRAM SX Eagle
Cassette SRAM SX 1210 11-50T Eagle

Wheel & Tyres

Wheelset WTB ST Light i30 on Strange 29
Tyres WTB Vigilante 2.5 and Trail Boss 2.4 Tan 29

Braking

Brakes Shimano Deore 6100 180/180

Finishing Kit

Seatpost KS Ragei 150mm Drop
Seat Clamp Strange Bolted
Stem Race Face Chester M35 x 40mm
Saddle WTB Silverado Sport
Handlebars RaceFace Chester 780mm M35
Grips Strange Grappler Lock-On


CLOCKWORK EVO 29 GEOMETRY
6061-T6 Custom Butted Aluminium
Frame SizeMLXL
Seat Tube17"18"19"
A. Head Angle66°66°66°
B. Seat Angle74°74°74°
C. Top Tube632643654
D. Effective TT630650670
E. BB Height (axle diff)-68-68-68
E. BB Height (from ground)302302302
F. Chainstay450450450
G. Head Tube110110120
H. Wheelbase119812171239
J. Reach445465483
K. Stack646646655
O. Fork Offset515151
Stem Length505050
Standover687706745
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre.
TECHNICAL INFO
FORK TRAVEL
OPTIMUMMAXIMUMMINIMUM
130 mm130 mm130 mm
Fork Offset51 mm
Rear Hub12 x 148 mm Boost
Seatpost Ø30.9 mm
Seat ClampØ34.9 mm
BB Shell73mm ISCG05
1.1/8" HeadsetUpper: ZS44/28.6
Lower: EC44/40

BIKE SIZING GUIDELINES
M 5'6"5'10"
L 5'9"6'1"
XL 6'0"6'5"

Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one.
